Stainless Steel Tanks

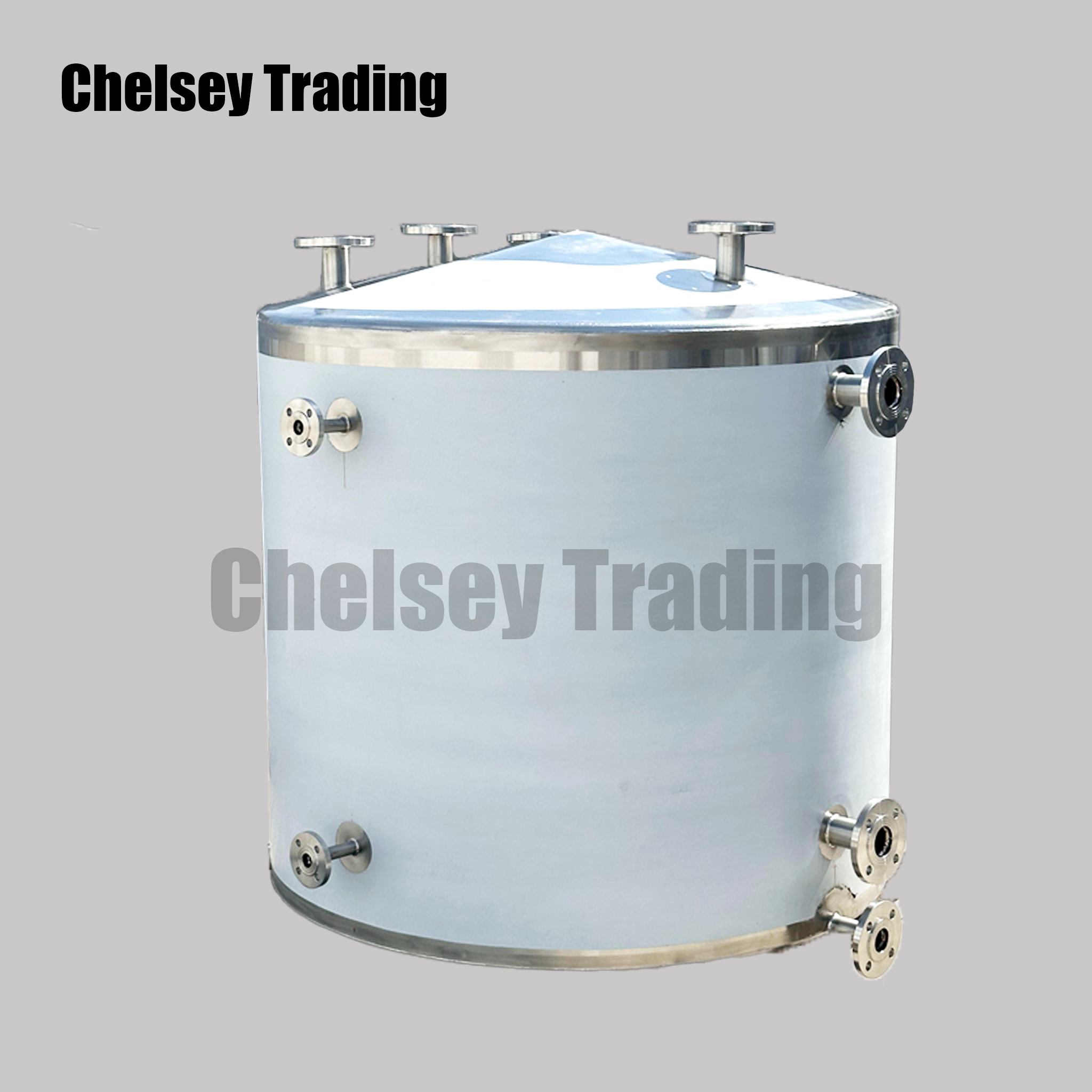

Stainless Steel Tank
- Excellent Corrosion Resistance: Made of high-quality stainless steel materials with strong anti-corrosion capability
- Good Hygiene Performance: Smooth surface that does not easily breed bacteria, meeting hygiene standards
- High Temperature Resistance: Can withstand high temperatures with wide application range
- Robust Structure: High strength and long service life
- Easy to Clean: Smooth inner surface for easy cleaning and maintenance
- Safe and Reliable: Complies with pressure vessel safety standards
Stainless Steel Tank is a storage equipment manufactured using high-quality stainless steel materials, widely used in food, pharmaceutical, chemical, water treatment and other industries. The product features excellent corrosion resistance, high temperature resistance and hygiene performance, capable of safely storing various liquid media. The stainless steel tank has a rational structural design, beautiful appearance and simple operation, making it an indispensable storage equipment in modern industrial production.
Technical Standards
| Item | Technical Standard |
|---|---|
| Material | 304, 316L Stainless Steel |
| Volume Range | 1-200 m³ |
| Design Pressure | Atmospheric to 2.5 MPa |
| Operating Temperature | -20℃ to 300℃ |
| Surface Treatment | Brushed, Mirror Polish |
| Connection Type | Flanged Connection, Welded |
| Manufacturing Standard | GB150, ASME VIII |
| Hygiene Standard | FDA, 3A Standard |
Basic Models
| Model | Type | Features |
|---|---|---|
| SST-1000 | 1-ton Vertical Tank | Vertical structure, space-saving |
| SST-2000 | 2-ton Horizontal Tank | Horizontal structure, easy installation |
| SST-5000 | 5-ton Insulated Tank | With insulation layer, good thermal performance |
| SST-10000 | 10-ton Large Tank | Large capacity for batch storage |
Main Components Material Table
| No. | Part Name | Material |
|---|---|---|
| 1 | Tank Body | 304/316L Stainless Steel |
| 2 | Head | 304/316L Stainless Steel |
| 3 | Flange | 304/316L Stainless Steel |
| 4 | Sealing Ring | Food-grade Silicone, EPDM |
| 5 | Level Gauge | Transparent Acrylic |
| 6 | Support Legs | 304 Stainless Steel |
| 7 | Insulation Material | Rock Wool, Polyurethane |
| 8 | Outer Cladding | 304 Stainless Steel |
No drawing available.
