Lined Valves

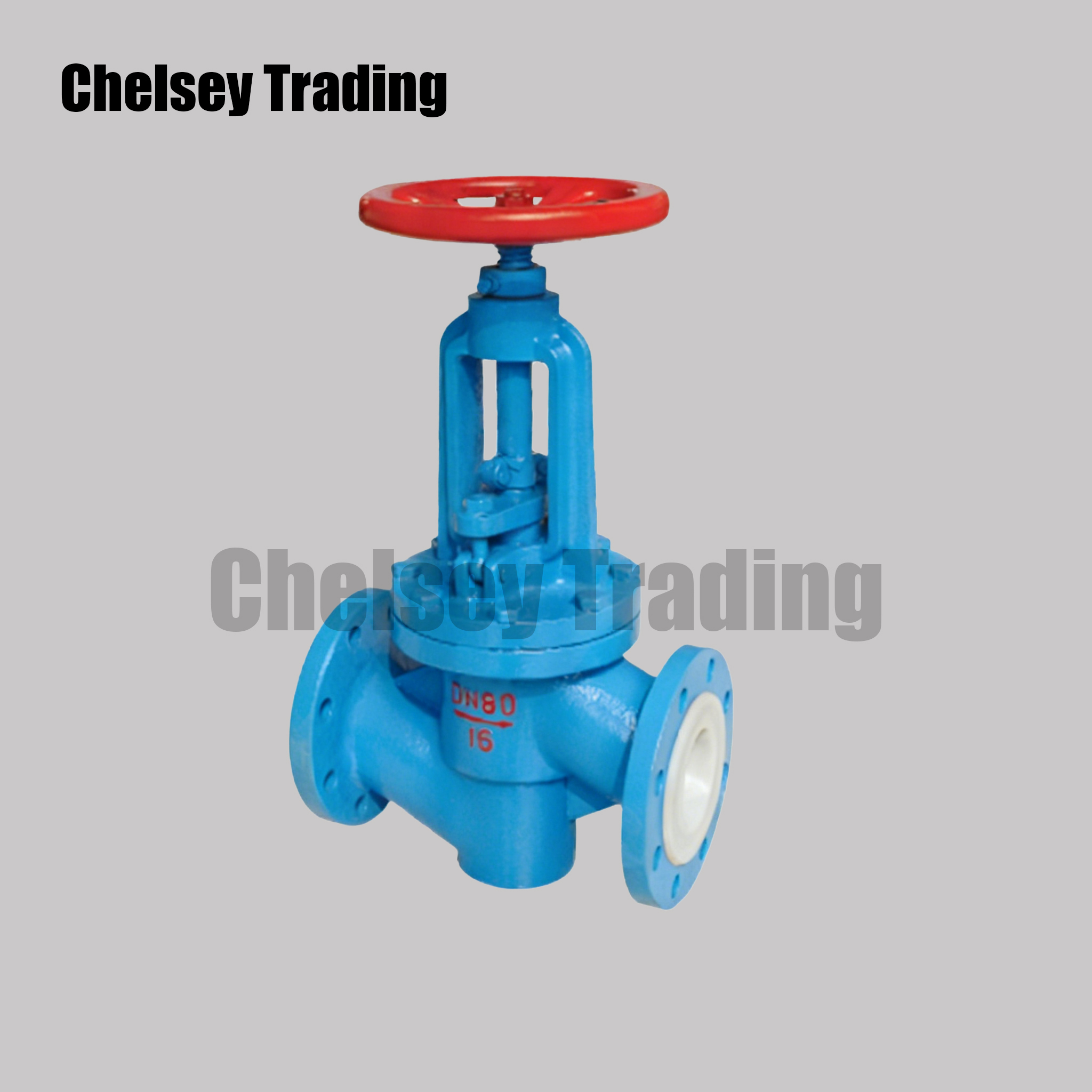

Lined Globe Valve
- Excellent Corrosion Resistance: All flow surfaces lined with fluorine, capable of resisting almost all chemical media erosion
- Good Sealing Performance: Globe valve structure with tight sealing surface contact for reliable sealing
- High Regulation Accuracy: Suitable for flow regulation with high regulation accuracy
- Small Opening/Closing Torque: Reasonable structural design with relatively small opening/closing torque
- Long Service Life: Fluoroplastic lining is corrosion-resistant with long service life
- Wide Application Range: Suitable for various corrosive media
Lined Globe Valve is a special valve based on the traditional globe valve, with a layer of fluoroplastic (such as PTFE, FEP, PFA, etc.) lining on the inner surface of flow-contacting components such as the valve body, disc, and stem. This design enables the valve to effectively resist the erosion of corrosive media such as strong acids, strong alkalis, and organic solvents, while maintaining the advantages of globe valves such as good sealing performance and high regulation accuracy. Lined Globe Valves are widely used in corrosive medium pipeline systems in industries such as chemical, petrochemical, pharmaceutical, pesticide, and dye, especially suitable for applications requiring precise flow control.
Technical Standards
| Item | Technical Standard |
|---|---|
| Design and Manufacturing | GB/T 12235, ANSI B16.34 |
| Structure Length | GB 12221, ASME B16.10 |
| Flange Dimensions | GB/T 9113, ANSI B16.5 |
| Pressure Rating | PN1.0, 1.6, 2.5, 4.0 MPa |
| Operating Temperature | -40℃ to +180℃ |
| Applicable Media | Strong acids, strong alkalis, organic solvents and other corrosive media |
| Valve Type | Straight-through, Angle Type |
| Connection Type | Flanged Connection, Threaded Connection |
Basic Models
| Model | Type | Features |
|---|---|---|
| J41F | Lined Flanged Globe Valve | Flanged connection with reliable sealing |
| J21W | Lined Threaded Globe Valve | Threaded connection with compact structure |
| J45F | Lined Angle Globe Valve | Angle structure for flow direction change |
| J941F | Lined Electric Globe Valve | Electric actuator with automated control |
Main Components Material Table
| No. | Part Name | Material |
|---|---|---|
| 1 | Valve Body | Carbon Steel, Cast Steel, Stainless Steel |
| 2 | Disc | Stainless Steel + PTFE/FEP/PFA Lining |
| 3 | Seat | PTFE, FEP, PFA |
| 4 | Valve Stem | Stainless Steel |
| 5 | Packing | PTFE, Flexible Graphite |
| 6 | Hand Wheel | Cast Iron, Cast Steel |
| 7 | Bolts | Stainless Steel |
| 8 | Nuts | Stainless Steel |
