Lined Valves
Lined Ball Valve
- Excellent Corrosion Resistance: All flow surfaces lined with fluorine, capable of resisting almost all chemical media erosion
- Fast Opening/Closing: Ball valve structure requiring only 90-degree rotation to achieve full open or full close
- Good Sealing Performance: Soft sealing structure with reliable sealing and minimal leakage
- Low Flow Resistance: Direct-through ball valve channel with low fluid resistance and minimal pressure loss
- Easy Maintenance: Simple structure for convenient maintenance
- Wide Application Range: Suitable for various corrosive media
Lined Ball Valve is a special valve based on the ball valve, with a layer of fluoroplastic (such as PTFE, FEP, PFA, etc.) lining on the inner surface of flow-contacting components such as the valve body, ball, and seat. This design enables the valve to effectively resist the erosion of corrosive media such as strong acids, strong alkalis, and organic solvents, while maintaining the advantages of ball valves such as rapid opening/closing, reliable sealing, and low flow resistance. Lined Ball Valves are widely used in corrosive medium pipeline systems in industries such as chemical, petrochemical, pharmaceutical, pesticide, and dye, making them ideal control devices for transporting corrosive fluids.
Technical Standards
| Item | Technical Standard |
|---|---|
| Design and Manufacturing | GB/T 12237, API 6D |
| Structure Length | GB 12221, ASME B16.10 |
| Flange Dimensions | GB/T 9113, ANSI B16.5 |
| Pressure Rating | PN1.0, 1.6, 2.5 MPa |
| Operating Temperature | -40℃ to +180℃ |
| Applicable Media | Strong acids, strong alkalis, organic solvents and other corrosive media |
| Valve Type | O-type Ball Valve, V-type Ball Valve |
| Connection Type | Flanged Connection, Wafer Type Connection |
Basic Models

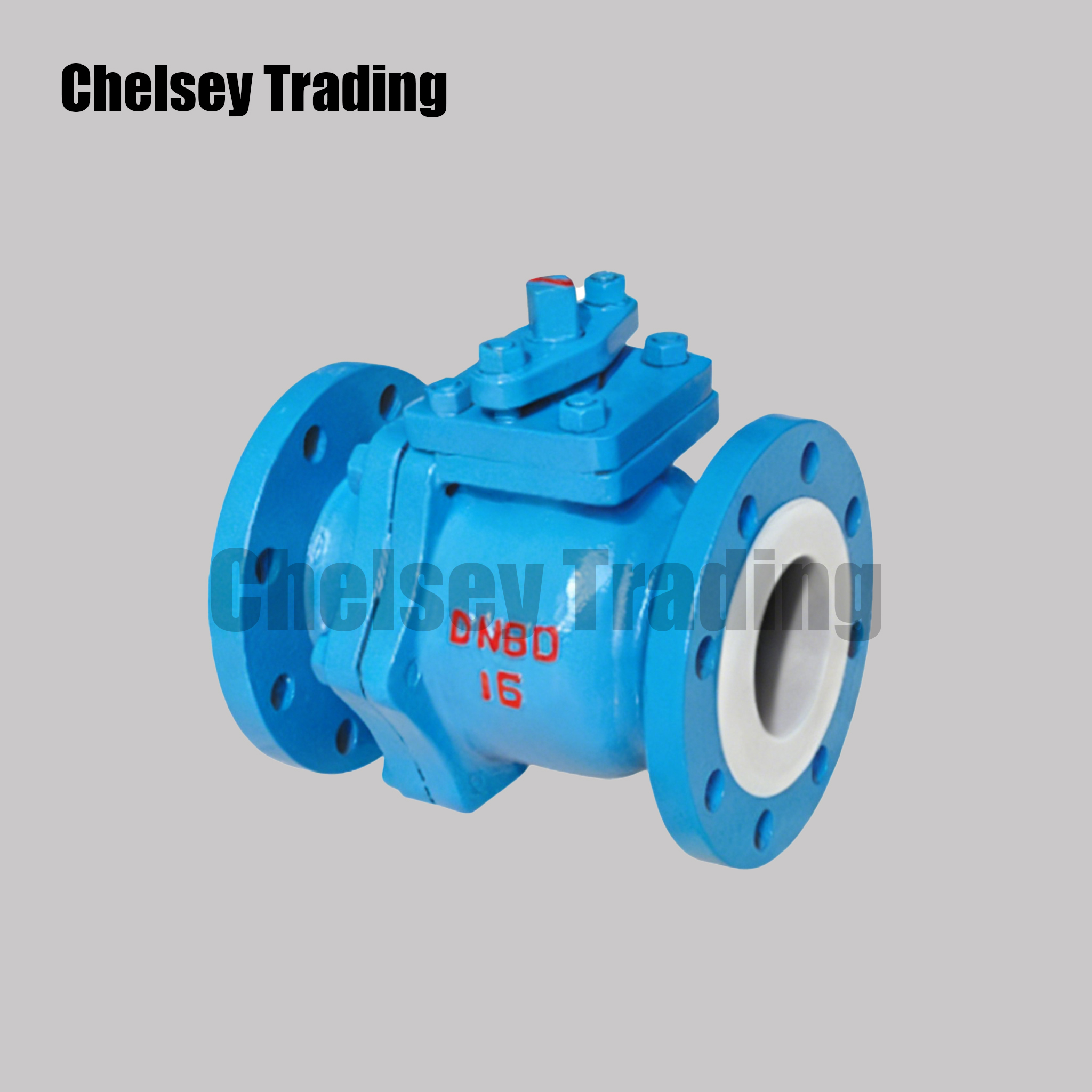

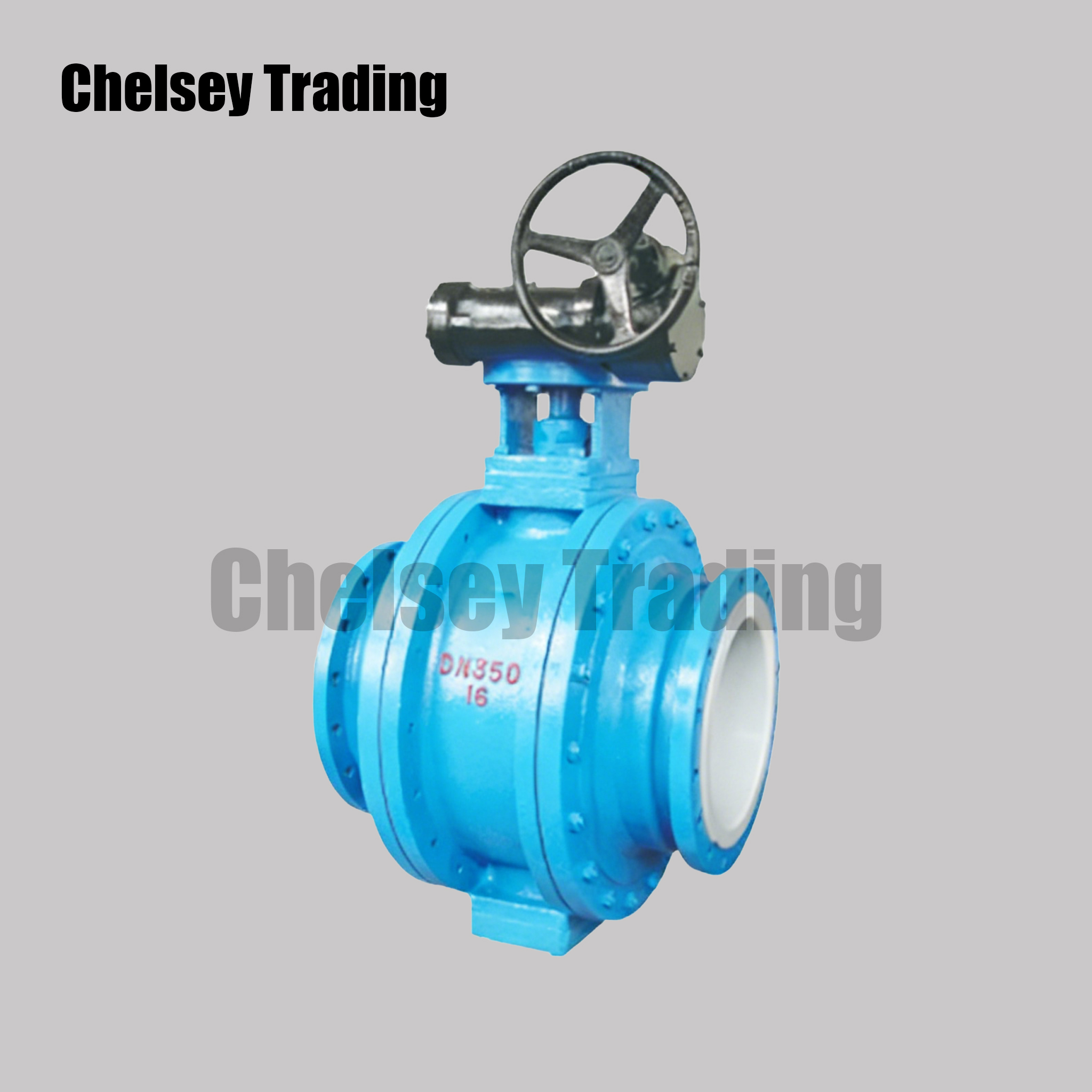

| Model | Type | Features |
|---|---|---|
| Q41F | Lined Flanged Ball Valve | Flanged connection with reliable sealing |
| Q341F | Lined Worm Gear Flanged Ball Valve | Worm gear transmission with high torque |
| Q641F | Lined Pneumatic Ball Valve | Pneumatic actuator with automated control |
| Q941F | Lined Electric Ball Valve | Electric actuator with precise control |
Main Components Material Table
| No. | Part Name | Material |
|---|---|---|
| 1 | Valve Body | Carbon Steel, Cast Steel, Stainless Steel |
| 2 | Ball | Stainless Steel + PTFE/FEP/PFA Lining |
| 3 | Seat | PTFE, FEP, PFA |
| 4 | Valve Stem | Stainless Steel |
| 5 | Packing | PTFE, Flexible Graphite |
| 6 | Handle | Cast Iron, Cast Steel |
| 7 | Bolts | Stainless Steel |
| 8 | Nuts | Stainless Steel |
