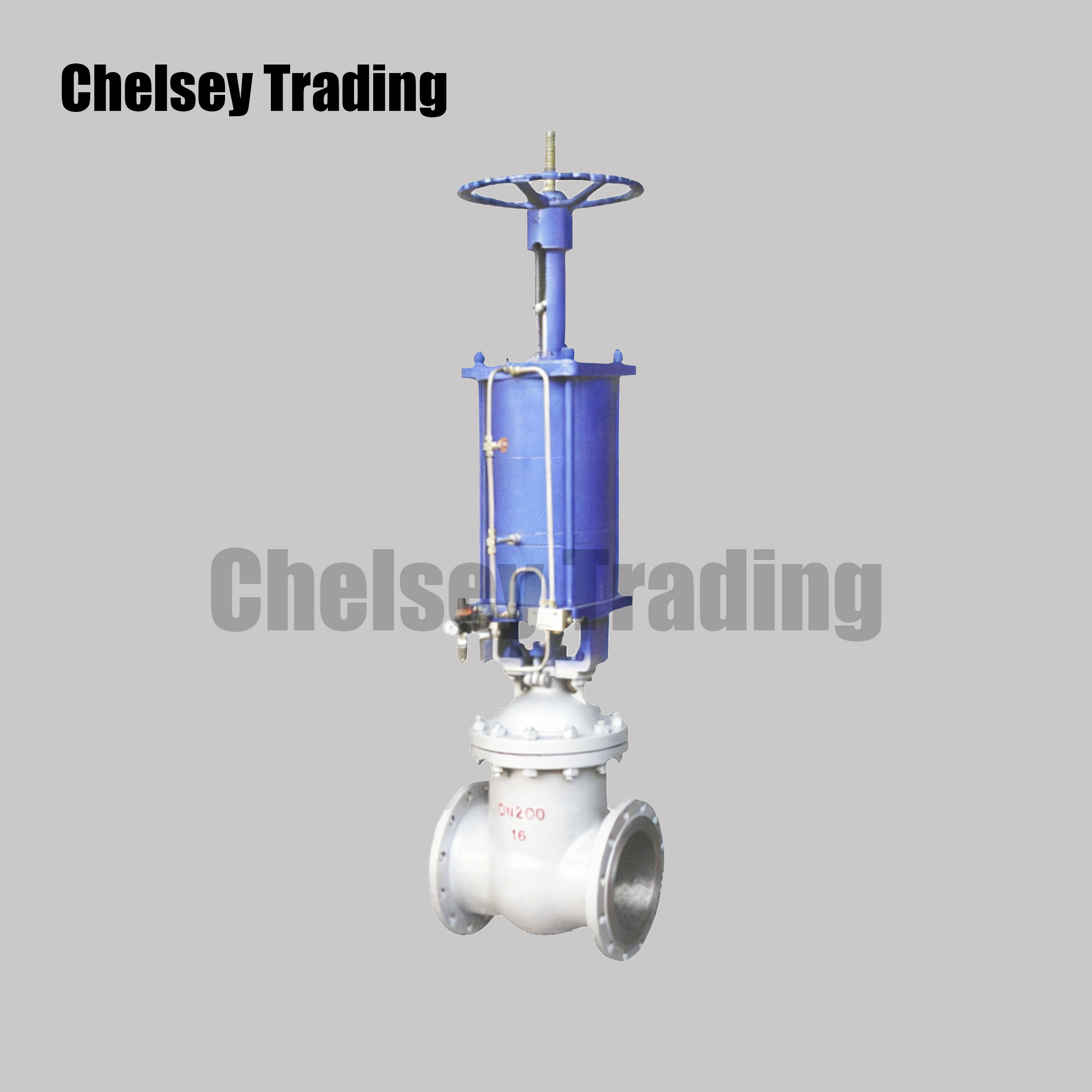

Cast Steel Pneumatic Gate Valve
- Automated Control: Equipped with pneumatic actuator for remote automatic control
- Fast Opening/Closing: Pneumatic drive with short opening/closing time and fast operation
- Small Torque: Pneumatic actuator provides stable driving force with small opening/closing torque
- Reliable Structure: Cast steel body with high strength and good pressure resistance
- Good Sealing Performance: Precisely machined gate and valve seat sealing surfaces for reliable sealing
- Wide Application Range: Suitable for multiple operating conditions and media with wide application range
Cast Steel Pneumatic Gate Valve is an automated control gate valve made with cast steel body and equipped with a pneumatic actuator. The valve uses compressed air as the power source and drives the valve stem through a pneumatic actuator to achieve opening and closing of the gate valve. Cast Steel Pneumatic Gate Valves feature small opening/closing torque, short opening/closing time, simple operation, and high degree of automation. They can achieve remote control and automatic control, and are widely used in automated pipeline systems in industries such as petrochemical, power, metallurgy, and water treatment, especially suitable for operating conditions requiring frequent operation or unattended operation.
Technical Standards
| Item | Technical Standard |
|---|---|
| Design and Manufacturing | GB/T 12234, API 600, ASME B16.34 |
| Inspection and Testing | GB/T 13927, API 598 |
| Flange Dimensions | GB/T 9113, ASME B16.5 |
| Pressure Rating | PN1.6 |
| Operating Temperature | -29℃ to +425℃ |
| Air Supply Pressure | 0.4~0.7 MPa |
| Operation Mode | Double Acting/Single Acting (Spring Return) |
| Body Material | WCB, WCC, LC1, LC2 |
Basic Models
| Model | Type | Features |
|---|---|---|
| Z641H | Pneumatic Flanged Wedge Gate Valve | Flanged connection with pneumatic drive |
| Z642H | Pneumatic Welding Wedge Gate Valve | Welding connection with reliable sealing |
| Z671H | Pneumatic Wafer Type Gate Valve | Wafer connection with compact structure |
| Z652H | Pneumatic Lug Type Gate Valve | Lug connection for easy installation |
Main Components Material Table
| No. | Part Name | Material |
|---|---|---|
| 1 | Valve Body | WCB, WCC, LC1, LC2 |
| 2 | Valve Cover | WCB, WCC, LC1, LC2 |
| 3 | Gate | 2Cr13, 304, 316 |
| 4 | Valve Stem | 2Cr13, 304, 316 |
| 5 | Pneumatic Actuator | Aluminum Alloy, Cast Iron |
| 6 | Cylinder | Aluminum Alloy, Stainless Steel |
| 7 | Spring | Spring Steel |
| 8 | Seals | Nitrile Rubber, EPDM |
