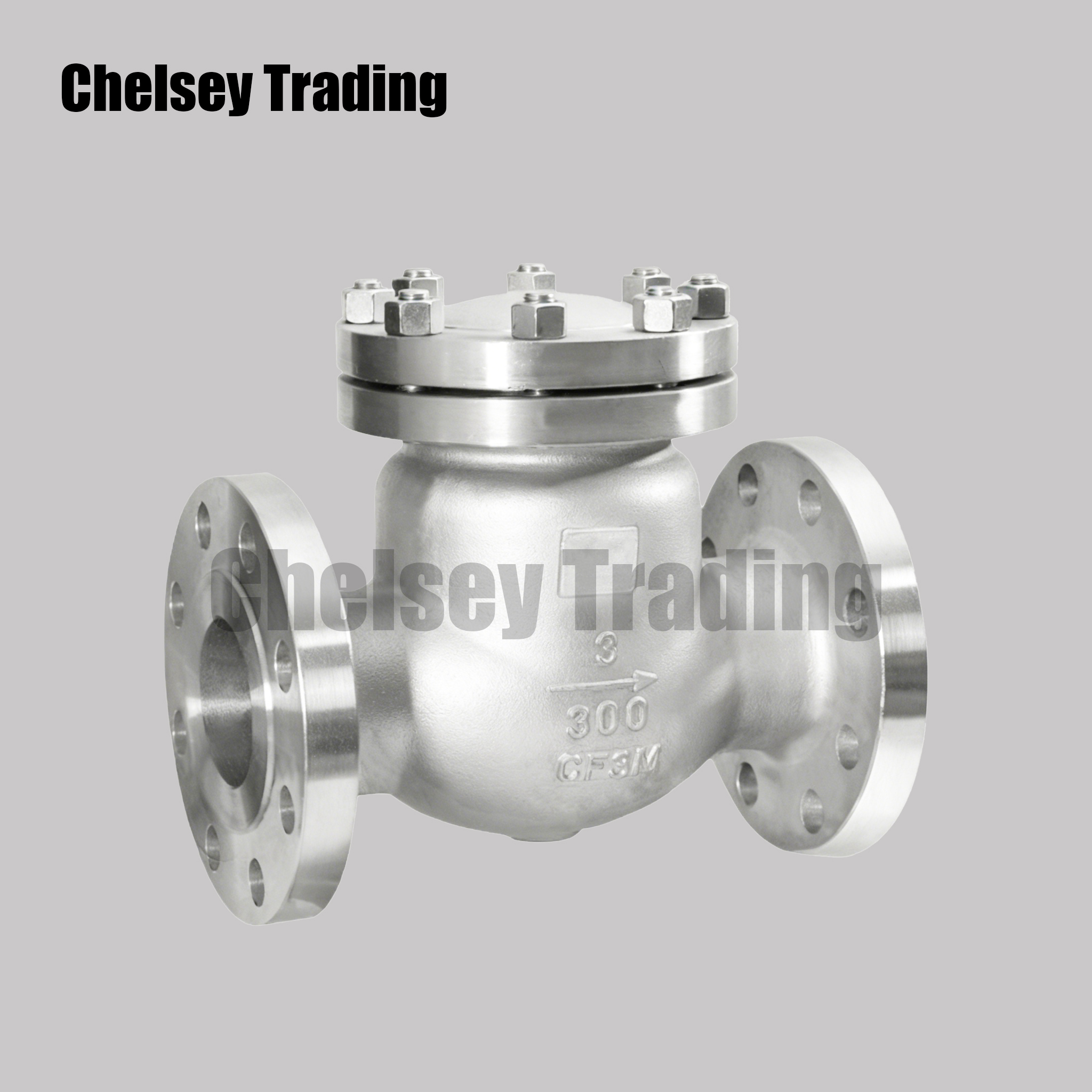

American Standard Swing Check Valve
- ASME/API Compliant, High Versatility: Designed in accordance with American standards like API 6D and ASME B16.34, ensuring high product quality and interchangeability in international projects.
- Low-Resistance Design: Features a streamlined flow path that minimizes flow resistance when fully open, making it ideal for large-diameter pipelines sensitive to pressure drop.
- Robust Bolted Bonnet Structure: Utilizes a bolted bonnet and an external swing arm, providing a sturdy construction that is easy to maintain.
- Reliable Sealing: The sealing surfaces of the disc and seat can be overlaid with hard alloys (e.g., Stellite) to suit operating conditions, providing excellent wear and high-temperature resistance for long-term sealing reliability.
- Flexible Installation: Can be installed horizontally or vertically on pipelines where the medium flows upwards.
The American Standard Swing Check Valve is a check valve designed and manufactured in strict accordance with American national standards such as ANSI and API. It features a disc that swings freely on a hinge pin, opening automatically under the pressure of the forward-flowing medium. When the flow ceases or reverses, the disc closes automatically by its own weight and back-pressure, preventing any backflow. Characterized by its robust construction, low flow resistance, and reliable sealing, this valve is widely used in demanding industrial pipeline systems such as petroleum, chemical, and power stations.
General Technical Parameters
| Parameter | Specification |
|---|---|
| Design Standard | API 6D, ASME B16.34, BS1868 |
| Pressure Rating | Class150 - Class2500 |
| Nominal Diameter | 2" - 32" (DN50 - DN800) |
| Body Material | Carbon Steel (WCB), Stainless Steel (CF8, CF8M), Alloy Steel |
| Connection | Flanged (RF, RTJ) |
| Working Temperature | -29°C ~ 570°C |
Dimensions Data (150Lb Reference)
| DN (mm) | DN (in) | L | D | D1 | D2 | b | z x Φd | H |
|---|---|---|---|---|---|---|---|---|
| 50 | 2 | 203 | 150 | 120.6 | 92 | 19 | 4xΦ19 | 161 |
| 65 | 2 1/2 | 216 | 180 | 139.7 | 105 | 22 | 4xΦ19 | 180 |
| 80 | 3 | 241 | 190 | 152.4 | 127 | 24 | 4xΦ19 | 190 |
| 100 | 4 | 292 | 230 | 190.5 | 157 | 24 | 8xΦ19 | 203 |
| 150 | 6 | 356 | 280 | 241.5 | 216 | 25 | 8xΦ22 | 257 |
| 200 | 8 | 495 | 345 | 298.5 | 270 | 29 | 8xΦ22 | 292 |
| 250 | 10 | 622 | 405 | 362 | 324 | 30 | 12xΦ25 | 355 |
| 300 | 12 | 698 | 485 | 432 | 381 | 32 | 12xΦ25 | 396 |
