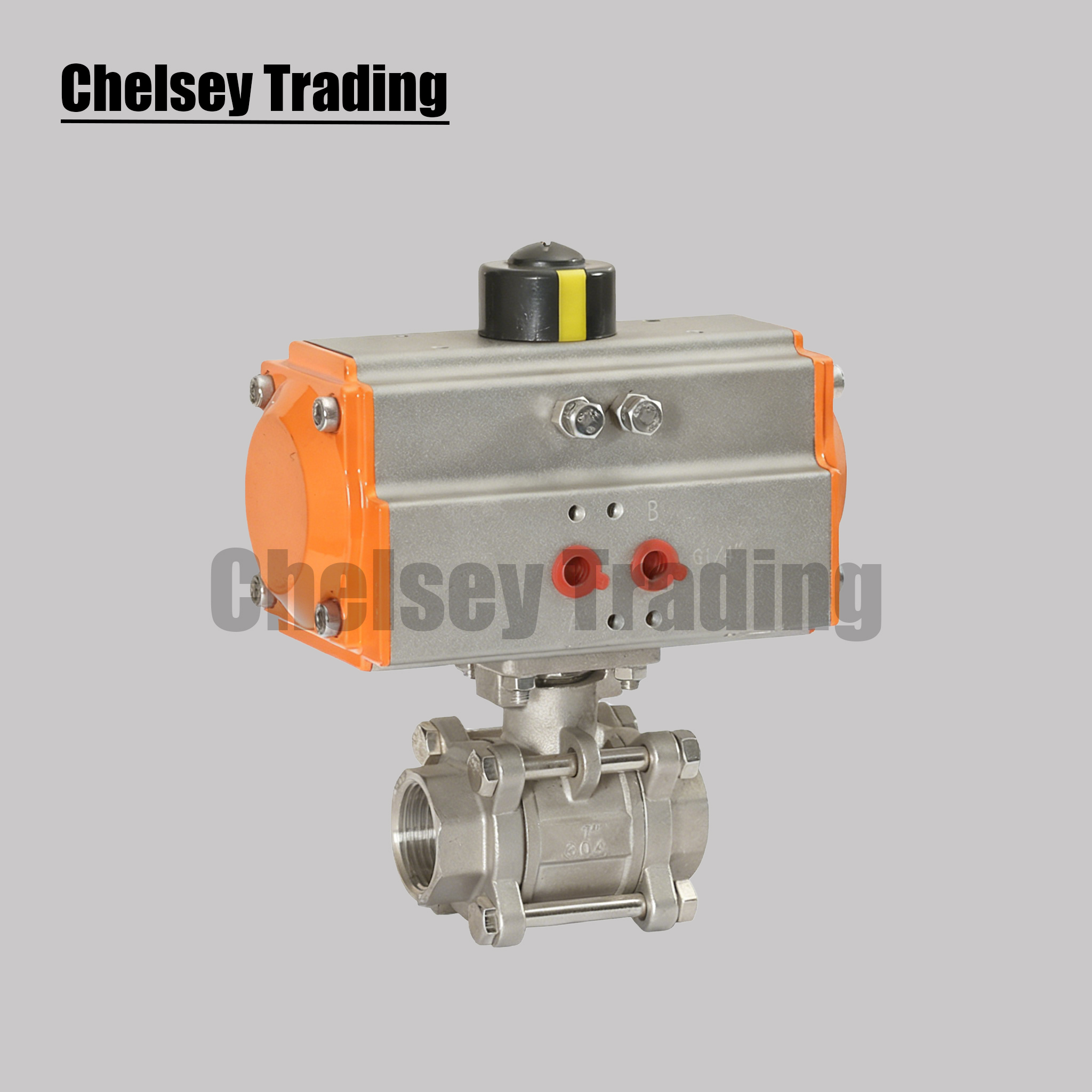

3-Piece Pneumatic Ball Valve
- 3-Piece Body for Easy Maintenance: The valve body can be disassembled in-line, making it exceptionally convenient to replace wear parts like seats and seals, significantly reducing maintenance costs and downtime.
- Pneumatic Actuation for Rapid Switching: Paired with a pneumatic actuator, it offers a fast response for rapid opening and closing of the fluid line.
- Full Port, Low Resistance: The full port design ensures nearly zero pressure loss as the medium flows through.
- Blow-out Proof Stem: The stem is bottom-loaded to prevent it from being ejected even under abnormal system pressure, ensuring operational safety.
- Fire-Safe & Anti-Static Design: Features fire-durable and anti-static constructions to enhance safety in demanding or hazardous environments.
The 3-Piece Pneumatic Ball Valve is an automated valve assembly consisting of a 3-piece ball valve body and a pneumatic actuator. Its "3-piece" design, where the body is composed of two end caps and a central body clamped by bolts, offers the significant advantage of extremely convenient in-line maintenance. It allows for internal inspection and seal replacement without removing the entire valve from the pipeline. Paired with a pneumatic actuator, it provides rapid shut-off or opening of the pipeline medium, making it widely used in industrial automation control systems with high demands for switching speed and ease of maintenance.
Product Specification
| Item | Standard |
|---|---|
| Design Spec. | API 6D, API 600 |
| Face to Face | ANSI B16.10 |
| Flange End | ANSI B16.5 |
| Inspection & Test | API 598 |
| Marking | MSS SP-25 |
Main Part Material
| Part Name | Available Materials |
|---|---|
| Body/Bonnet | A216-WCB, A105, A352-LC8, A351-CF8, A351-CF8M, A351-CF3, A351-CF3M |
| Ball | A182-F304, A182-F316, A182-F304L, A182-F316L |
| Stem | A182-F6a, A182-AF6a, A182-F304, A182-F316, A182-F304L, A182-F316L |
| Seat | PTFE, R.PTFE |
| Packing/Gasket | PTFE, FPM, Flexible Graphite |
| Bolt | A193-B8, A193-B8M |
| Suitable Temp. | -40°C ~ 121°C |
| Suitable Medium | Water, Oil, Steam, Nitric Acid, Acetic Acid |
